The activation or disconnection takes place via the hydraulic or pneumatic supply present in the system.

PTO clutches | Hydraulic disc clutches

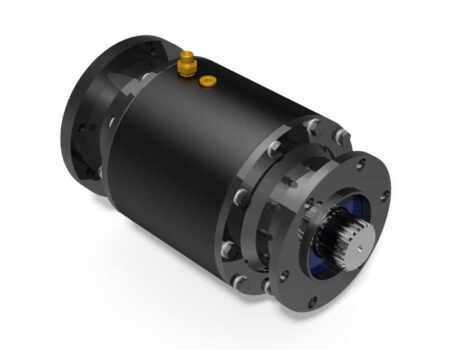

3D Hydraulische Lamellenkupplung hydraluic pto clutch - lamella disc clutch

PTO clutch | Hydraulic disc clutch

Product characteristics of the PTO clutches

Developed and tested as an intermediate coupling, it is primarily used as a connectable or disconnectable connection between power and working units, e.g. between gearbox and pump or in similar installation situations. The connection or disconnection is made by the hydraulic supply available in the system. The system pressures required for the clutch are in the range of up to 30 bar. Higher pressures are possible on request.

Torques in the range from 1 to 1,500 Nm can be safely transmitted with this multi-plate clutch. In the clutch, plates designed for dry running ensure optimum torque transmission at all times of operation. Thanks to the use of special sealing materials, the clutch system operates leak-free and impresses with its low no-load torque.

Torque-transmitting components of the multi-plate clutch, such as the housing and hub, are made of high-strength and heat-treated materials. Due to its compact design, the pure switching unit can also be integrated or retrofitted in existing systems. Various design options are available for connecting your aggregates. Special designs, e.g. with integrated belt drive, are also possible on request.

Amsbeck Maschinentechnik GmbH has added hydraulically switchable multi-plate clutches type HZK to its product range due to its many years of experience as a supplier of reliable system components in drive technology. Contact us - we deliver the solution - competently and quickly.

Our diverse areas of application

The PTO clutches are used in:

Mobile applications
Agricultural and forestry machinery
Pressure and flushing vehicles
Crushing machines
Machine construction
Manufacturing plants

Would you like to check whether the multi-plate clutch principle is suitable for your application? Please feel free to contact us by phone, contact form or e-mail. Our team will be happy to coordinate the technical design with you.
